Pass Box
Kipril, Your Trusted China Cleanroom Supplier
Specializing in modular cleanroom and pre-fabricated cleanroom, Kipril delivers ISO class 3 to ISO class 8 certificated, turnkey cleanroom solutions with full on-site installation and commissioning. From design to production, scalable, precise and reliable.
Standard Pass Box
Standard Pass Box
Purpose: Primarily used for transferring small items between clean and non-clean areas to reduce cleanroom door openings and maintain clean environments.
Features:
Dual-door electronic interlock design effectively prevents air exchange between clean and non-clean areas
Equipped with automatic air shower function to minimize contamination of clean areas from external items
Applications: Suitable for general clean environments with moderate cleanliness requirements, such as electronics, food processing, and standard laboratories.
| Dimensions (W×D×H) | External: 800×680×760 mm | External: 1000×880×960 mm |
| Internal: 600×600×600 mm | Internal: 800×800×800 mm |
| Material | 1. Exterior: Painted steel plate/Interior: Stainless steel 2. Whole stainless steel construction | |
| Control System | Two-door electronic interlock | |
| Window | Double-layer toughened glass window | |
| Optionals | – UV sterilization lamp | |
| – Intercom system | ||
| Power Supply | 0.1 kW / 1-phase 220V | 0.1 kW / 1-phase 220V |
Air Shower Pass Box
Air Shower Pass Box
Purpose: Mainly used in high-grade cleanrooms to ensure high cleanliness levels of transferred items’ surfaces.
Features:
- Dual-door electronic interlock prevents cross-contamination
- Automatic sensor-activated air shower system efficiently removes dust and particles from item surfaces
- Powerful airflow ensures items meet high cleanliness standards before entering clean areas
Applications: Ideal for industries with strict cleanliness requirements including semiconductor, precision instruments, and high-grade cleanrooms.

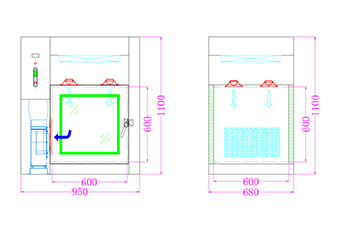

| Dimensions (W×D×H) | External: 950×680×1100 mm | External: 1150×880×1300 mm |
| Internal: 600×600×600 mm | Internal: 800×800×800 mm | |
| Construction Material | Exterior: Powder-coated steel plate | Full stainless steel construction |
| Interior: Stainless steel | ||
| Filtration System | 1 set | 1 set |
| – Pre-filter | Efficiency: G4 | Efficiency: G4 |
| Size: 595×295×25 mm | Size: 595×295×25 mm | |
| – HEPA filter | Efficiency: 99.99% @0.3μm | Efficiency: 99.99% @0.3μm |
| Size: 480×480×70 mm | Size: 480×480×70 mm |
| Air Shower System | ||
| – Fan | 1 pc (High static pressure, large air volume motor) | 1 pc (High static pressure, large air volume motor) |
| – Air velocity | ≥25 m/s | ≥25 m/s |
| – Nozzles | 4 pcs (Stainless steel, 360° adjustable) | 6 pcs (Stainless steel, 360° adjustable) |
| Control System | Microprocessor-controlled | Microprocessor-controlled |
| LED display (adjustable air shower time) | LED display (adjustable air shower time) | |
| Two-door electronic interlock | Two-door electronic interlock | |
| Optional Features | Intercom system | Intercom system |
| Power Supply | 0.77 kW / 1-phase 220V | 0.77 kW / 1-phase 220V |
Self-Cleaning Pass Box
Self-Cleaning Pass Box
Purpose: Specifically designed for high-standard industries like biotechnology, pharmaceuticals, and medical fields to ensure material transfer under Grade A cleanroom conditions.
Features:
- Complies with cGMP standards for sterile environments
- Built-in high-efficiency self-cleaning system continuously purifies during transfer to ensure contamination-free materials
- Dual-door interlock prevents air exchange between clean and non-clean areas
Applications: Essential for pharmaceutical plants, biological laboratories, and medical equipment manufacturing requiring Grade A cleanroom environments.

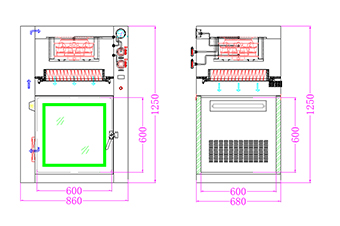

| Dimensions (W×D×H) | External: 860×680×1250 mm | External: 1060×880×1450 mm |
| Internal: 600×600×600 mm | Internal: 800×800×800 mm | |
| Construction Material | Full stainless steel 304 construction | Full stainless steel 304 construction |
| Filtration System | 1 set | 1 set |
| – Pre-filter | Efficiency: G4 | Efficiency: G4 |
| Size: 595×295×25 mm | Size: 595×295×25 mm | |
| – Liquid-tank HEPA filter | Efficiency: 99.99% @0.3μm | Efficiency: 99.99% @0.3μm |
| Size: 480×480×93 mm | Size: 480×480×93 mm |
| Purification System | ||
| – Fan | 1 pc (DC external rotor centrifugal fan) | 1 pc (DC external rotor centrifugal fan) |
| – Air velocity | 0.45 m/s ±20% | 0.45 m/s ±20% |
| Standard Accessories | – Differential pressure gauge | – Differential pressure gauge |
| – PAO dust port | – PAO dust port | |
| – DOP detection port | – DOP detection port | |
| – UV sterilization lamp | – UV sterilization lamp | |
| Control System | Microprocessor-controlled | Microprocessor-controlled |
| LED display (adjustable self-cleaning/sterilization time) | LED display (adjustable self-cleaning/sterilization time) | |
| Optional Features | Intercom system | Intercom system |
| Power Supply | 0.2 kW / 1-phase 220V | 0.2 kW / 1-phase 220V |
