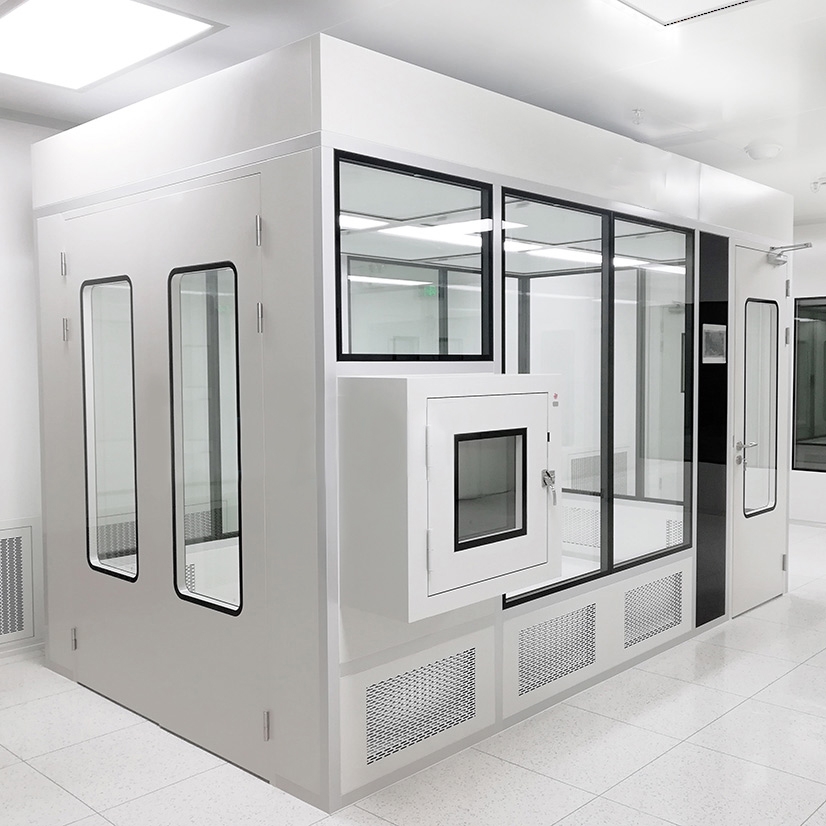

Modular Clean Rooms
Modular clean room is a prefabricated clean room with material reuse rate of up to 98%.
It can quickly improve the cleanliness of the area, meet the requirements of various cleanliness grades and space, and has the characteristics of convenience and speed, flexible disassembly and assembly, and short construction period.
Functions：
Quickly Upgrade Cleanliness Class;
Divide and Manage Different Environment；
Advantages：
Intelligent: Intelligent means the control system of modular clean room. Operate on a 7 or 10 inch LCD touch screen, FFU fans and lighting can be switched on or off, air speed can be adjusted, achieved distant operations by phone or computer, trace temperature, humidity, pressure and cleanliness class with different transducers.
AEconomical: Use of continuous current motor, lowest noise emission, 27%~30% power saving; Modular structures, fast-install and flexible, parts 100% recyclable; Cleanliness class can be easily upgraded by adding FFU amount.
ir-tight: Double glazing unit, outside and inside surfaces are flat and easy-cleaning; Efficiently keep the positive pressure and prevent cross pollution.
Beautiful: Installed with transparent and bright windows, or culture window allow to put up custom company slogans.

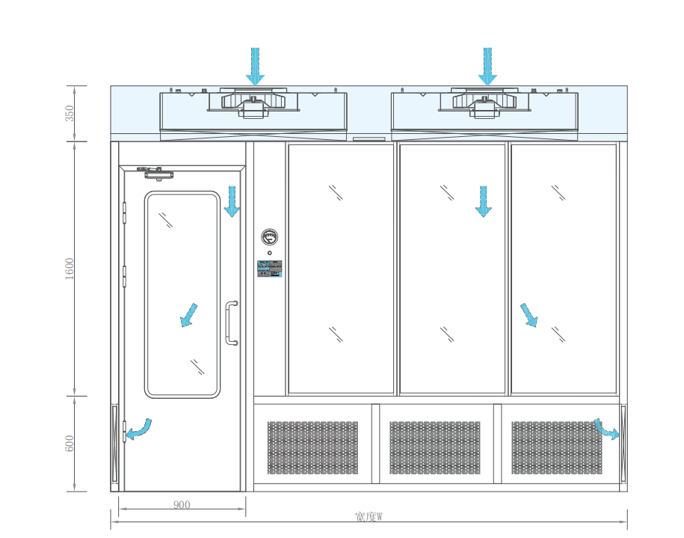

Standard Drawing:

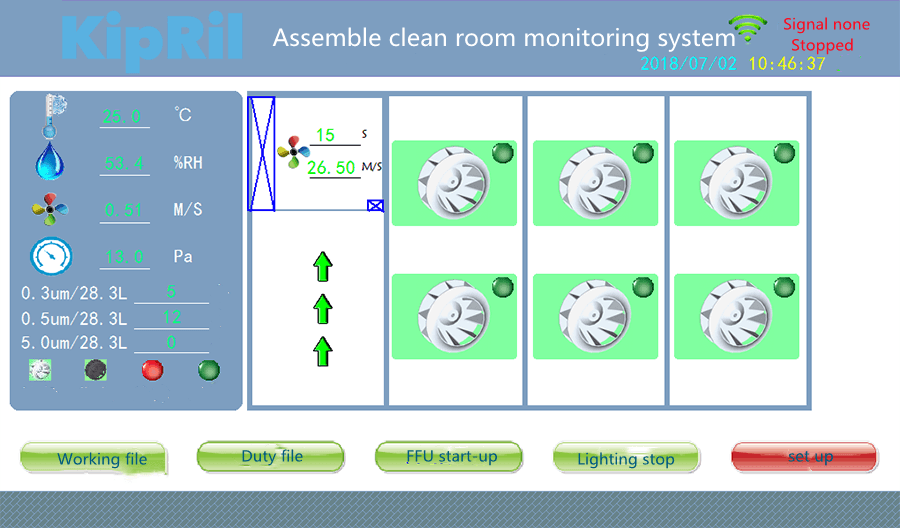

Group Control System：
| Type | Products | Configuration |
| Mainframe | Frame | Customized sheet materials 50*50*2.0 T |
| Painted steel plate 50*50*2.0 T | ||
| Enclosure | 50 mm Black bezzle tempered glass window 1.0 T painted steel plate | |
| 50 mm handmade rock wool purification board | ||
| Access doors | Double-open DORMA door closers with large hollow glass windows | |
| Double-open DORMA door closers with large hollow glass windows | ||
| Control system | 10 inch LCD touch control screen (FFU lighting start and stop and alarm function) | |
| Work mode/duty mode | ||
| Cleanliness Testing – Options | ||
| Temperature and humidity visibility – optional | ||
| Purification system | FFU | 1175*875*325 mm (high quality aluminized zinc box) |
| 1175*575*325 mm (high quality aluminized zinc box) | ||
| Fan | DC centrifugal fan, air volume 1650 CMH | |
| Ac centrifugal fan ,1080 CMH air volume | ||
| Filter | High efficiency filter without partition for aluminum frame (filter efficiency 99.99%0.3 um) | |
| Paper frame primary filter (filter efficiency G4) | ||
| Supporting equipment | Air shower | Outer dimensions 1300*1250*2150 Overall baking sheet |
| Cargo Room | Outer dimensions 2000*2000*2150 Overall baking sheet | |
| Transfer window | Internal dimensions 600*600*600 External cold baking paint, internal SUS304 | |
| Clean closet | Outer dimensions 1500*600*2150 Cold panel paint 50 mm hollow glass | |
| Handwashing dryer | Outer dimensions 1000*520*900 All SUS304, with induction tap | |
| Shoe stool | 750*400*500 mm Overall SUS304 | |
